SINODRO KA600 Linear encoder technical parameters:
1.Grating pitch: 20um / 4um
2.Resolution: 5um, 1um
3.Accuracy: +3um, +5um, +10um (20+0.1°C)
4. Measuring range: 1000mm to 3000mm
5.Moving speed: high speed ruler 120m / min (need to customized) ; Ordinary ruler ≤40m/min
6.Power supply 5V + 5%, 80mA ( 24V can be customized)
7.Cable length: standard 5 meter
8.Working temperature: 0-45 ° C

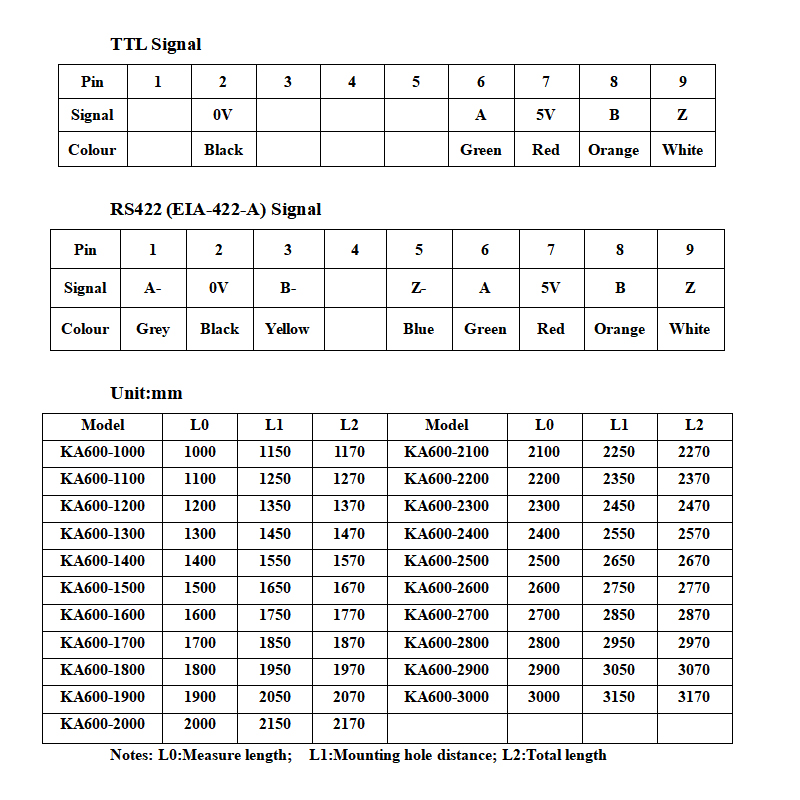

9.Plug pin: 9-pin socket, support RS-422 signal output, support TTL square wave signal output
10.Grating ruler zero: With reference point
1.Grating pitch: 20um / 4um
2.Resolution: 5um, 1um
3.Accuracy: +3um, +5um, +10um (20+0.1°C)
4. Measuring range: 1000mm to 3000mm
5.Moving speed: high speed ruler 120m / min (need to customized) ; Ordinary ruler ≤40m/min
6.Power supply 5V + 5%, 80mA ( 24V can be customized)
7.Cable length: standard 5 meter
8.Working temperature: 0-45 ° C
9.Plug pin: 9-pin socket, support RS-422 signal output, support TTL square wave signal output
10.Grating ruler zero: With reference point
 |
