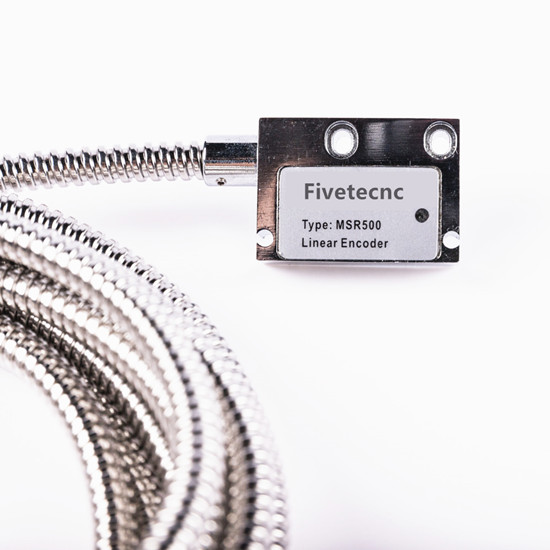

The magnetic scale is a non-contact displacement feedback system whose function is realized by magnetic induction.
Characteristics:
1. High precision, accuracy up to ±10μm/300mm, ±20μm/1000mm
2. Measuring length: 3 ~ 50 meters, can meet the application of large machine.
3. Not sensitive to shock, vibration and pollution, can be used in harsh environments such as dust and oil
4. Not easy to wear, maintenance-free, sturdy, long working life
Technical Parameters:
1. Resolution 5 micron or 1micron
2. Output signal TTL / RS422
3. Working voltage 5V to 24V ± 5%
4. The maximum moving speed is 30m/min
5. Working temperature -20 ° C ~ 70 ° C
